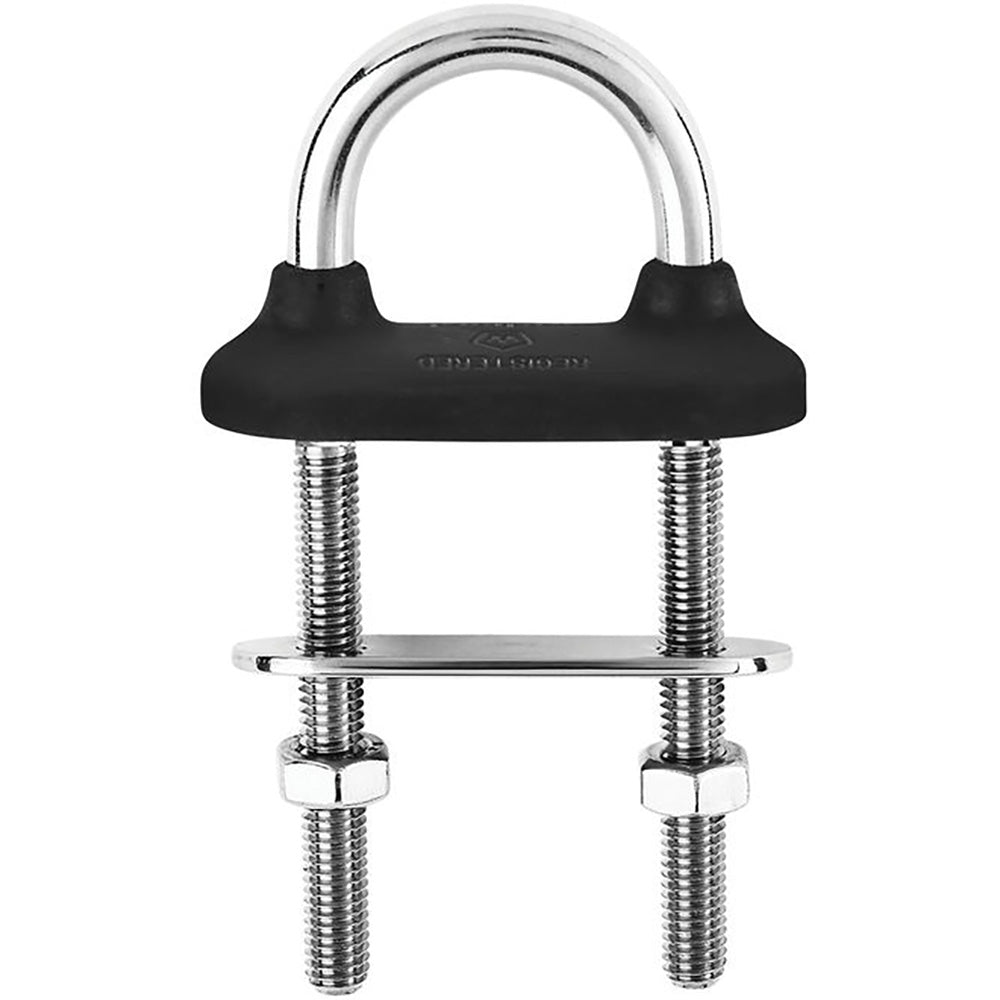

Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" [65361]

  • $66.95
    Unit price per
  • Save $45.73
Shipping calculated at checkout.


Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

Features:

  • Fully dropforged product with high quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials; 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 14100 / (kg) 6400
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.761 / (g) 345

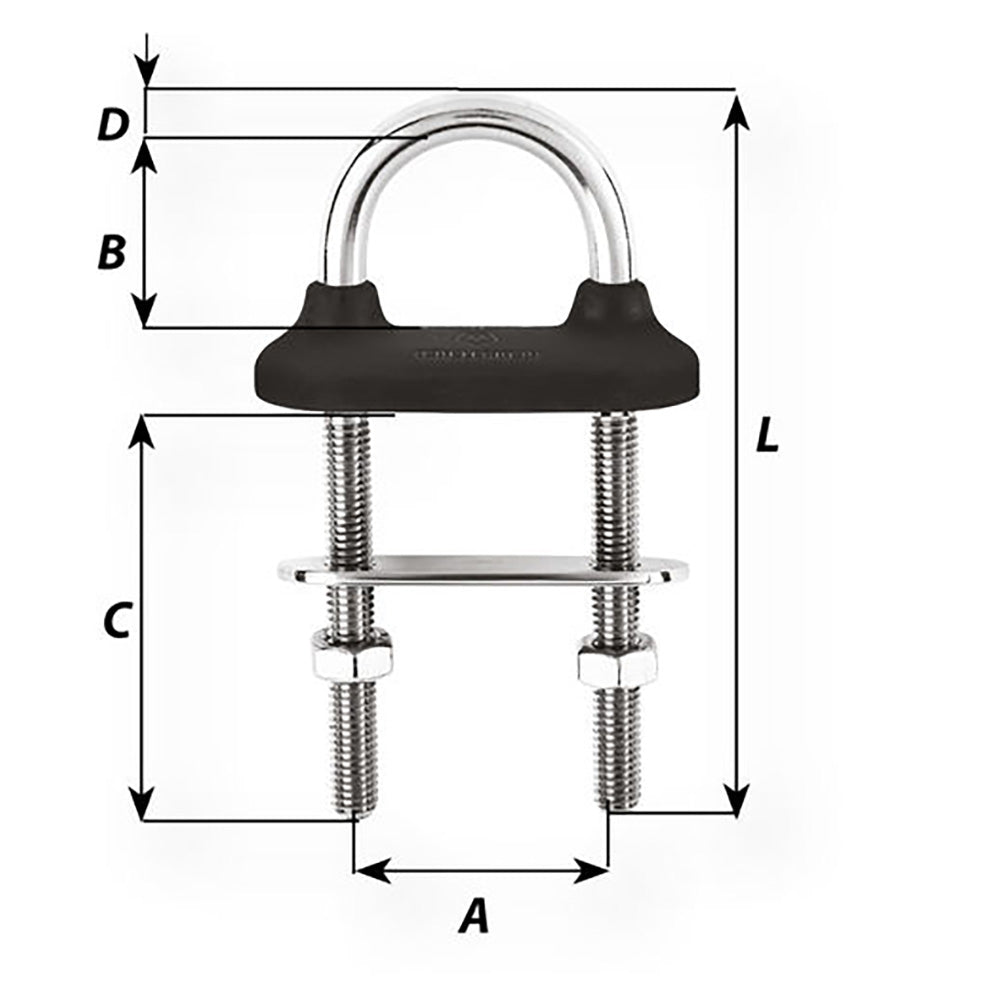

Dimensions:

  • Length: (inch) 4 21/64" / (mm) 110
  • A: (inch) 1 47/64" / (mm) 44
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 1 31/32" / (mm) 50
  • D diameter: (inch) 15/32" / (mm) 12

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
