Wichard 8mm Eye Nut - Thread M10 x 150mm [06345]

  • $32.89
    Unit price per
  • Save $5.80
Shipping calculated at checkout.

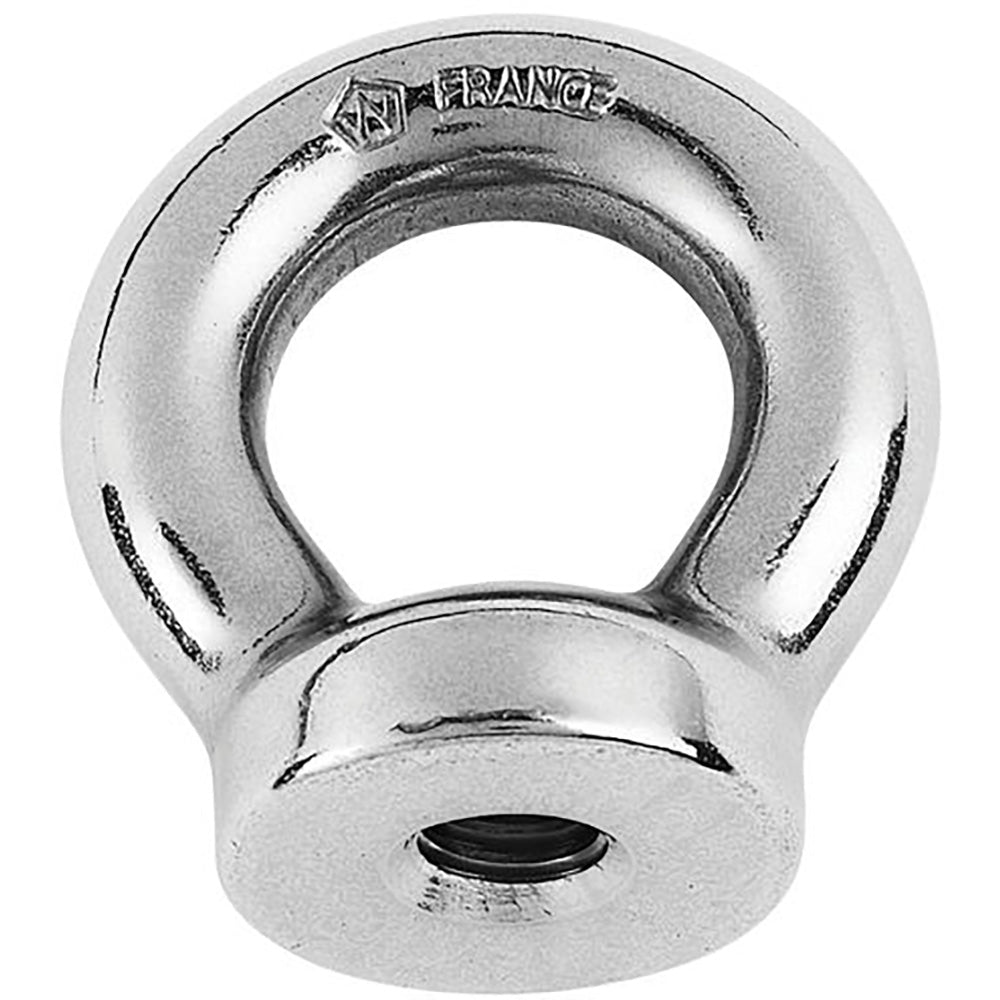

8mm Eye Nut - Thread M10 x 150mm

Features:

  • A complete range of single-piece forged products for fastenings applications
  • Outstanding breaking loads
  • Available in different sizes

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 9920 / (kg) 4500
  • Weight: (lb) 0.108 / (g) 49

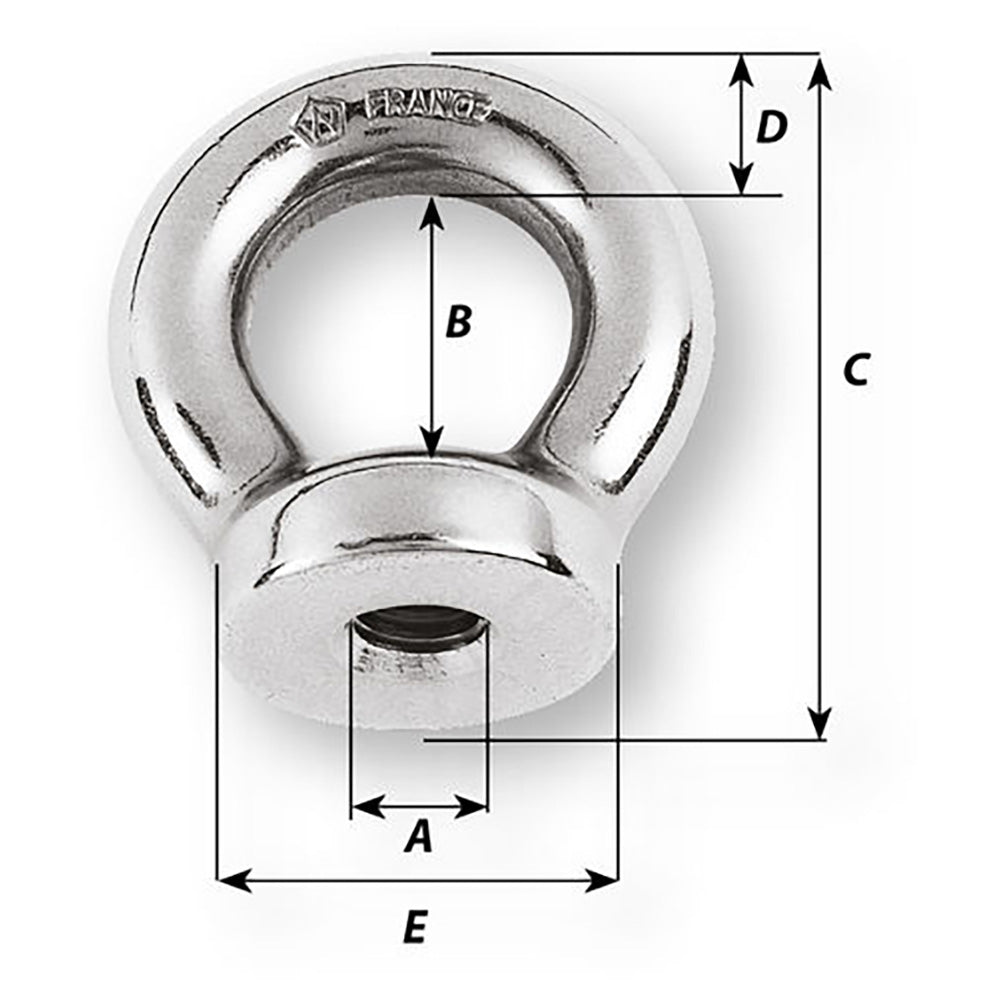

Dimensions:

  • A: (mm) M10 x 150
  • B: (inch) 43/64" / (mm) 17
  • C: (inch) 1 27/64" / (mm) 36
  • D: (inch) 5/16" / (mm) 8
  • E: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
