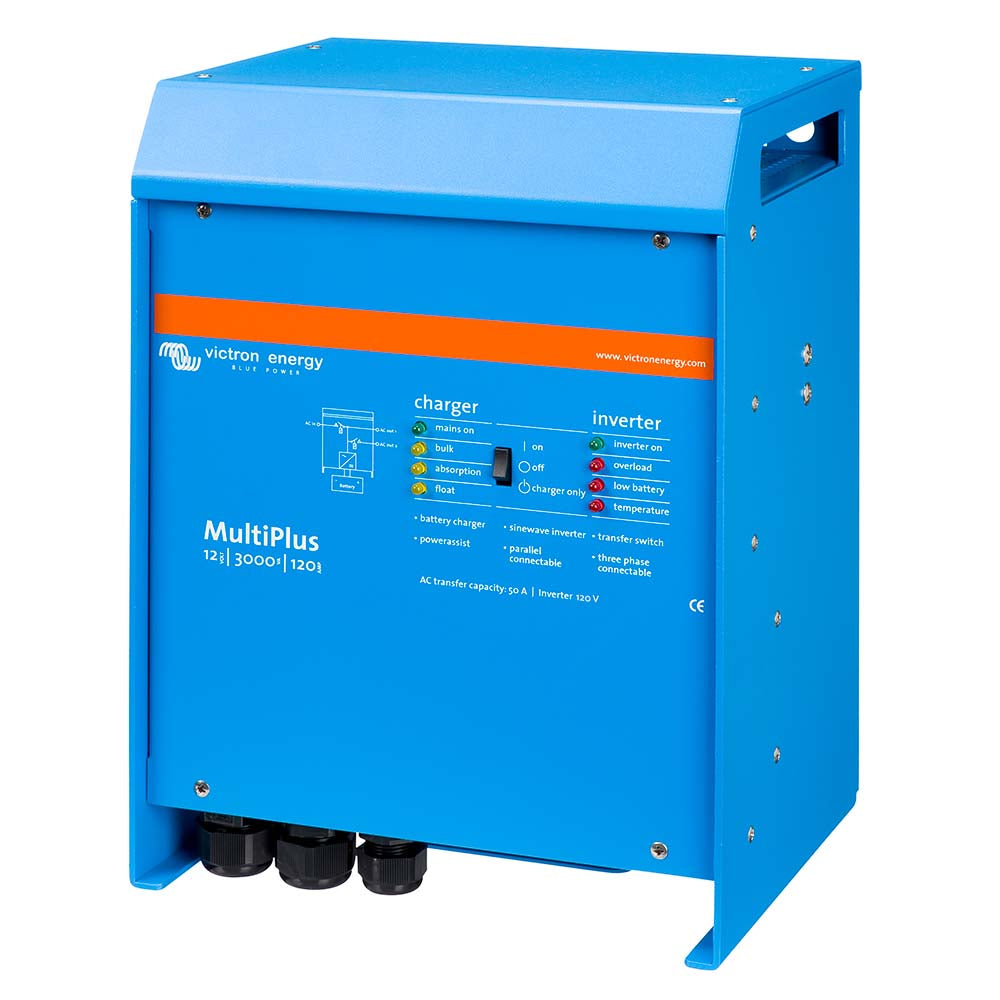

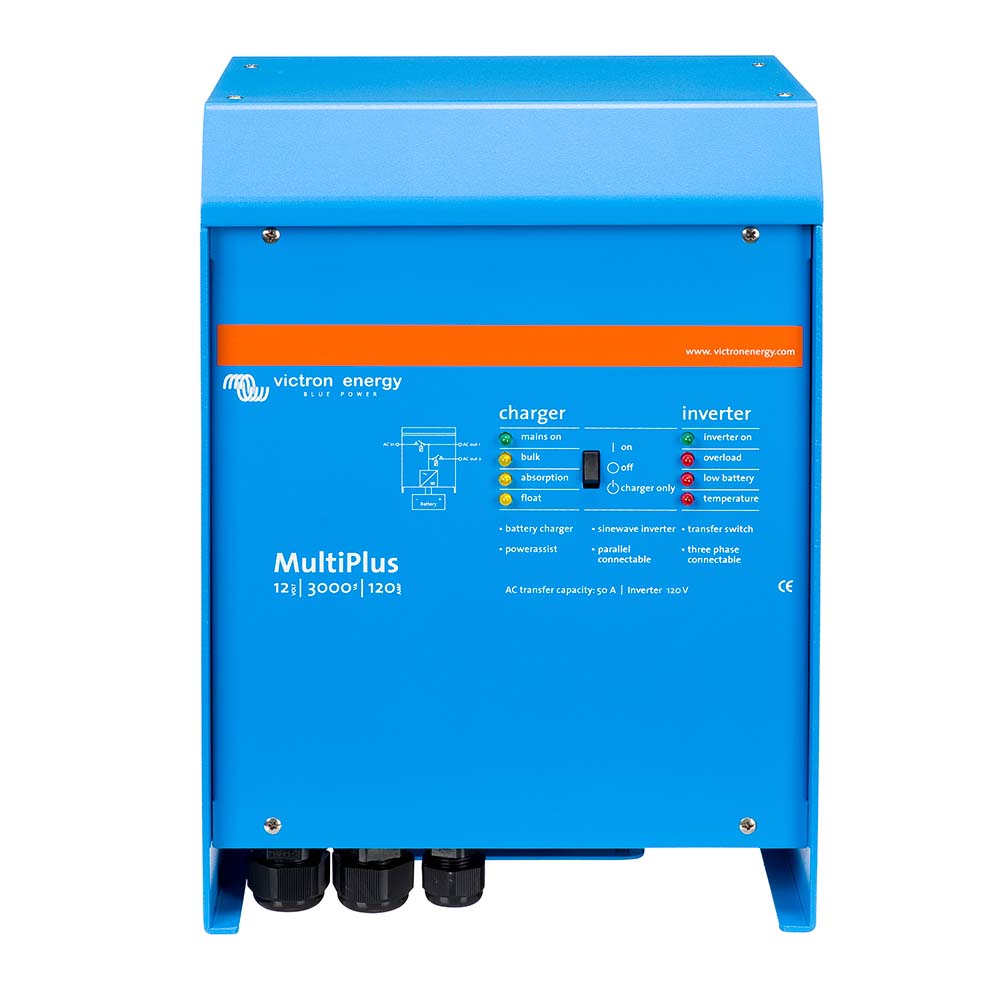

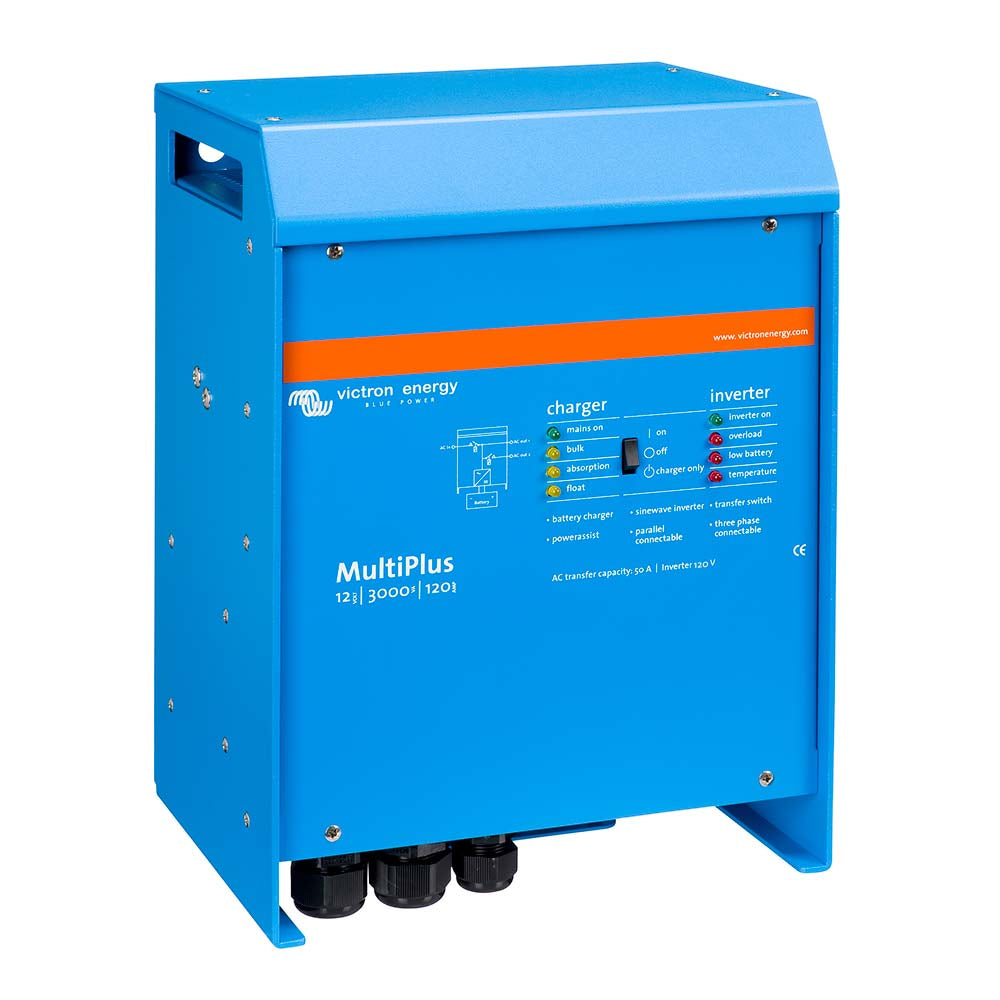

Victron MultiPlus Inverter/Charger 12 VDC - 3000W - 120vAC w/120AMP Battery Charger - 50AMP Transfer Switch [PMP123021102]
MultiPlus Inverter/Charger 12VDC - 3000VA - 120VAC with 120AMP Battery Charger - 50AMP Transfer Switch
- Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
- Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery
- Uninterrupted AC power (UPS function) - In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
- Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three-phase or split phase operation is also possible. Please check our datasheets to see which models have parallel, three-phase, and split phase capabilities.
- Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for-hire vehicles and more...
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product.
- Charger Input - Voltage: 94-140v
- Charger Output - Amps: 120a
- Charger Output Voltage: 12v
- Charging Banks: 1+1
- Inverter Cont. Output Wattage: 3000w
- Inverter Input Voltage: 9.3-17v
- Inverter Output Voltage: 120v
- Outlet Qty: None
- Box Dimensions: 13"H x 14"W x 18"L WT: 49.5 lbs
- UPC: 8719076023968
Quick Guide (pdf)
