APT6002 Aluminum PowerTower® Open Array Radar Mount - 6" Aft Leaning

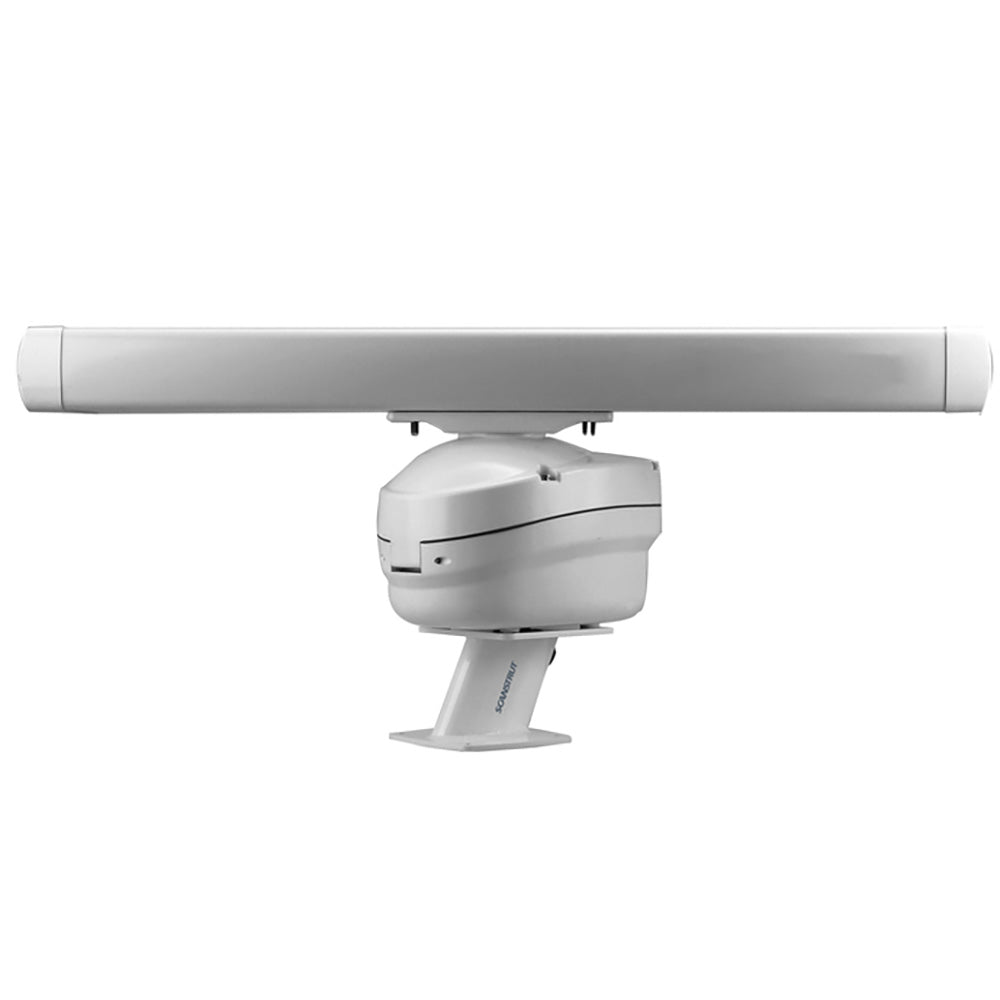

Scanstrut Aluminium PowerTower® has been designed and engineered to install your Open Array on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

Compatible with:

  • Garmin - GMR Fantom 254, 256, 54, 4, 6 radars
  • Humminbird - RH 44 radar
  • JRC - JMA 2343 / 5104 (Radome: NKE-2042) radar
  • Koden - 12kW [RB717A], 25kW [RB717A], 4kW [ RB716A], 6kW [ RB716A], 6kW [RB717A] radars
  • Lowrance - LRA 4000, 5000 radars
  • Navman - 8000 Series (8084/8120) 4' radars
  • Nobeltec - 4kW / 6kW radars
  • Northstar - M series/8000i (4' and 6') radars
  • Seiwa - SWR-10 (3.5' and 4.5') radars
  • Simrad -GB40 / NX40/45 / NSE8/12, DX64S radars
  • Sitex - MDS -10 (4' and 5'), RADARpc - 3.5 or 4.5 radars
  • Techmarine - T-74.05 and T-74.06 radars

Features:

  • Designed to fit the most up to date open array radars from Garmin, Raymarine, Simrad, and Furuno
  • Pre-drilled mounting holes allow the open array to fasten straight to the PowerTower®
  • Constructed from the best marine-grade aluminum
  • Paint finishes comply with our unique 4 step marine paint system

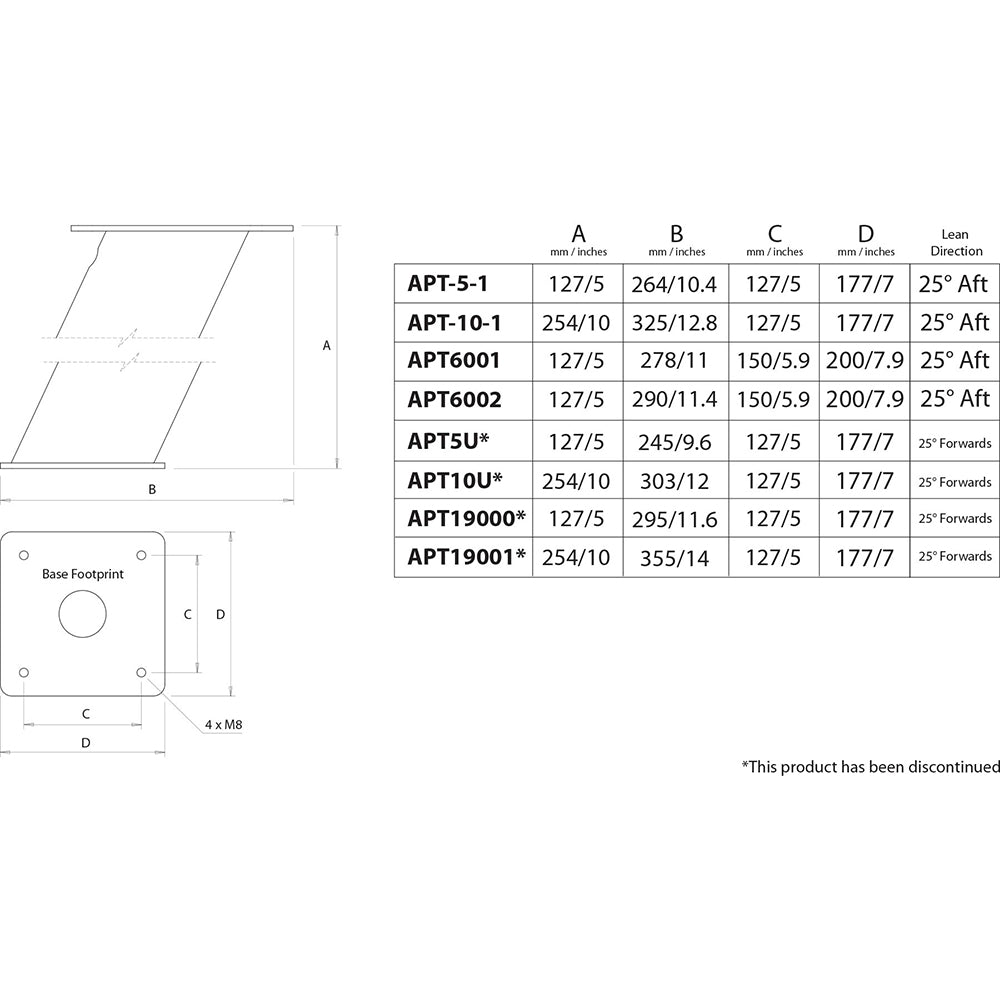

Technical Specifications:

  • Radar Type - Open Array
  • Material - Aluminum
  • Height - 6.9" (158mm)
  • Mounting Type - Aft leaning - 25°

In the Box:

  • Mount
  • Mounting hardware (excluding screws/bolts)
  • Installation manual

*Sold as an Individual

Specifications:

  • Construction: Powder Coated Aluminum
  • Type: Aft Leaning Mount
  • Height: 6.93
  • Box Dimensions: 8"H x 12"W x 12"L WT: 6.8 lbs
  • UPC: 5060114790391

Quick Guide (pdf)
