Mastervolt DC Master 24V to 12V Converter - 12 Amp [81400300]

  • $92.95
    Unit price per
  • Save $39.94
Shipping calculated at checkout.

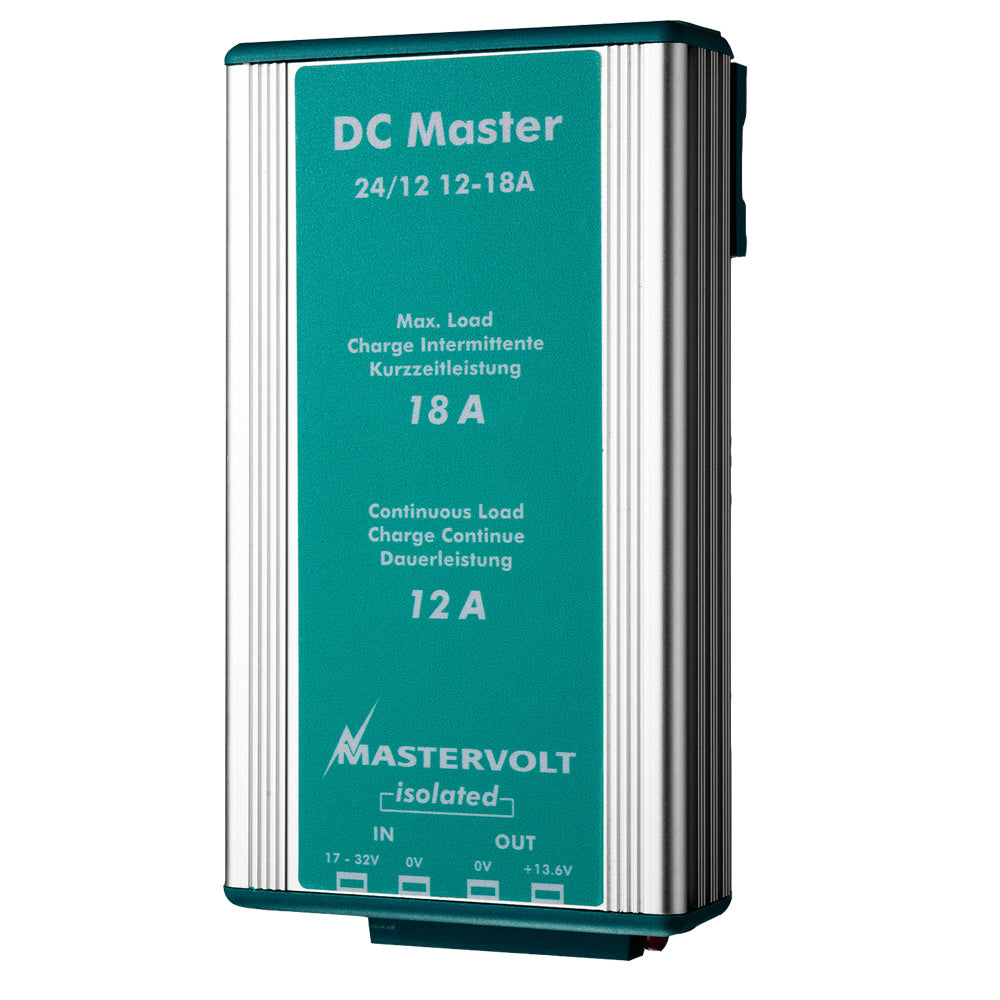

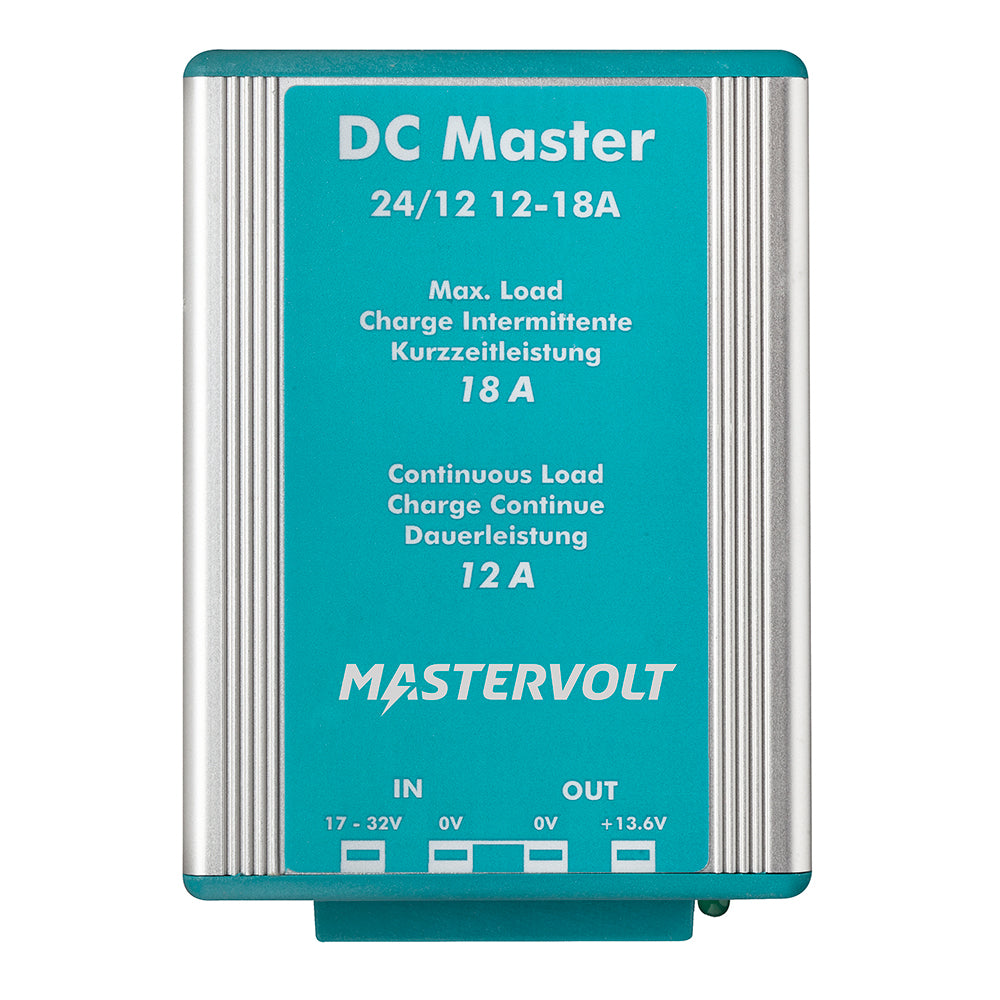

DC Master 24V to 12V Converter - 12 Amp

Always on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.

DC Master DC-DC converters

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.

Features:

  • Recreational and semi-professional use

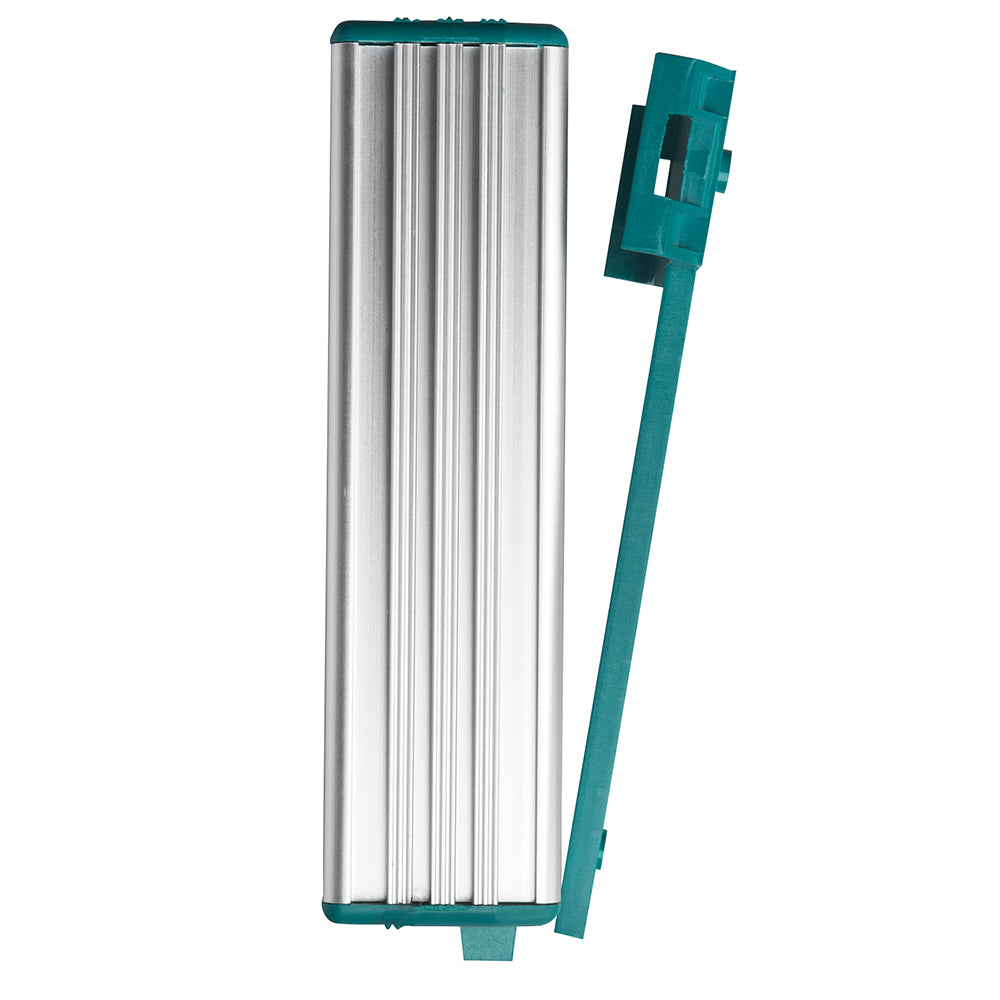

  • Easy to install using included mounting bracket, screws and fasteners
  • Smart electronics mean no unnecessary heat generation
  • Continuous output
  • Two minutes of extra power for short power boosts
  • Excellent price/performance ratio

General Specifications

  • Nominal output voltage: 13.6 V
  • Max. output power: 245 W
  • Nominal output power: 164 W
  • Max. output current (for 2 min. intervals): 18 A
  • Continuous output current: 12 A
  • Nominal input voltage: 24 V
  • Input voltage range (max.): 20-32 V DC (35 V)
  • Galvanic isolation: no
  • Stabilised: yes
  • Dimensions, hxwxd: 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch
  • Weight: 0.405 kg 0.9 lb
  • Compliance: CE

Technical Specifications

  • DC consumption: < 15 mA
  • Connections: fast-on
  • Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30
  • Cooling: natural cooling
  • Protection degree: IP53

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Charger Input - Voltage: 24v
  • Charger Output - Amps: 12a
  • Charger Output Voltage: 12v
  • Box Dimensions: 2"H x 4"W x 6"L WT: 0.95 lbs
  • UPC: 852968002806

Owner's Manual (pdf)
Brochure (pdf)
