Hella Marine NaviLED Port & Starboard Pair - 2nm - Clear Lens/White Housing [980520911]

  • $134.95
    Unit price per
  • Save $85.05
Shipping calculated at checkout.

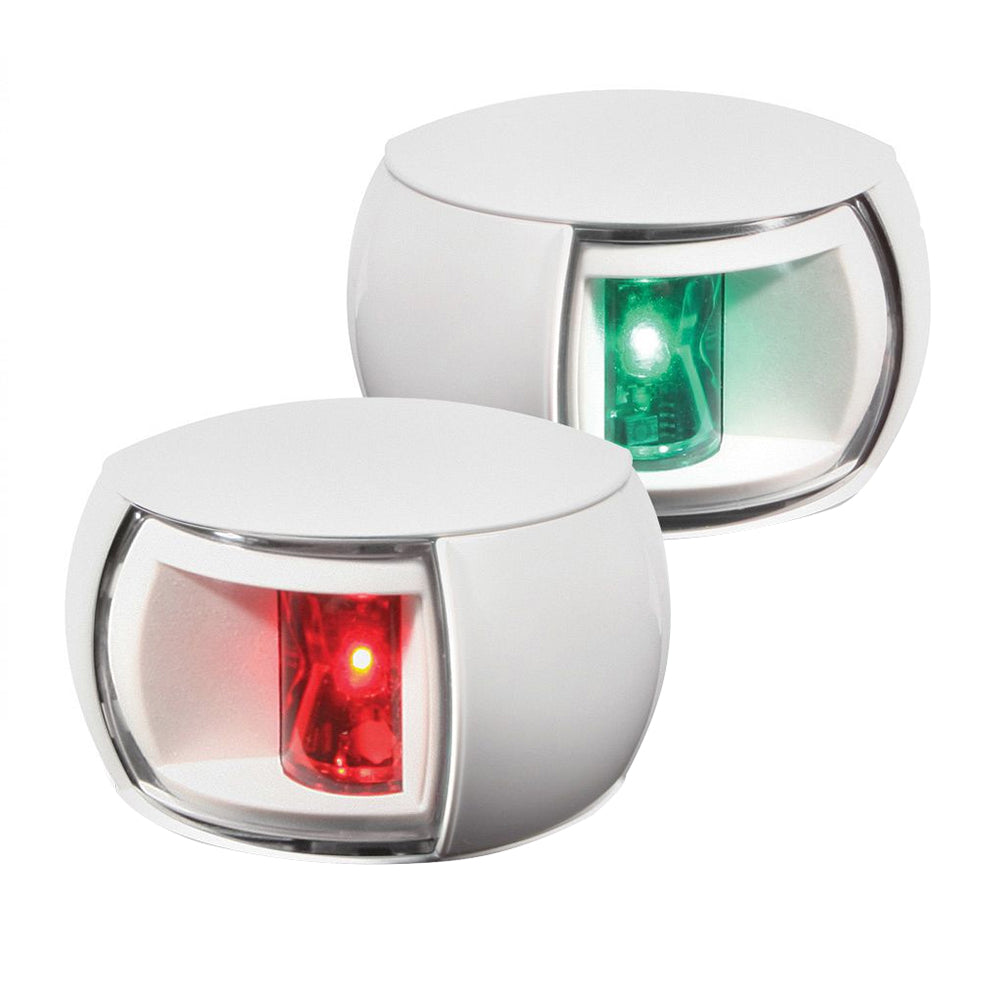

NaviLED Port & Starboard Pair - 2nm - Clear Lens/White Housing

Compact LED navigation lamps. Attractive, power-saving, and ultra-reliable. Designed and manufactured in New Zealand, NaviLED® lamps save power on board and provide outstanding durability.

Ultra-low current draw

NaviLED® lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2W combined!

No bulbs, No maintenance, ultra-long service life

Hella marine LED technology has no filaments to break making NaviLED® lamps extremely shock and vibration-proof for proven reliability and safety in demanding conditions.

Multivolt™ 9-33V DC

Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.

Fully sealed for life. IP 67 certified

Each NaviLED® lamp is a completely sealed unit. High-impact housings ensure durability from waves and impact.

Pre-wired with Marine Cable

Single-core (120mm) or twin-core (2.5m) sheathed marine cable assemblies available. Ensures time-saving, completely sealed installations.

Specifications:

  • Material Description: UV-resistant, enhanced impact-resistant acrylic lens High-impact shroud
  • Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
  • Cable: Pre-wired with marine cable
  • Operating Voltage: Multivolt™ 9-33V DC (earlier version 8-28V DC
  • Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
  • Power Consumption: Less than 2W combined
  • Degree of Protection: IP 67 - Completely Sealed
  • Weight: 60g (with 120mm cable version)
  • Approvals:  IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

Specifications:

  • Lens Color: Red/Green
  • Visible Range (Miles): 2nm
  • Housing: White
  • Voltage - Input Range (Volts): 12/24v
  • LED: Yes
  • Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs
  • UPC: 9416325196570

Quick Guide (pdf)
